BruSurf

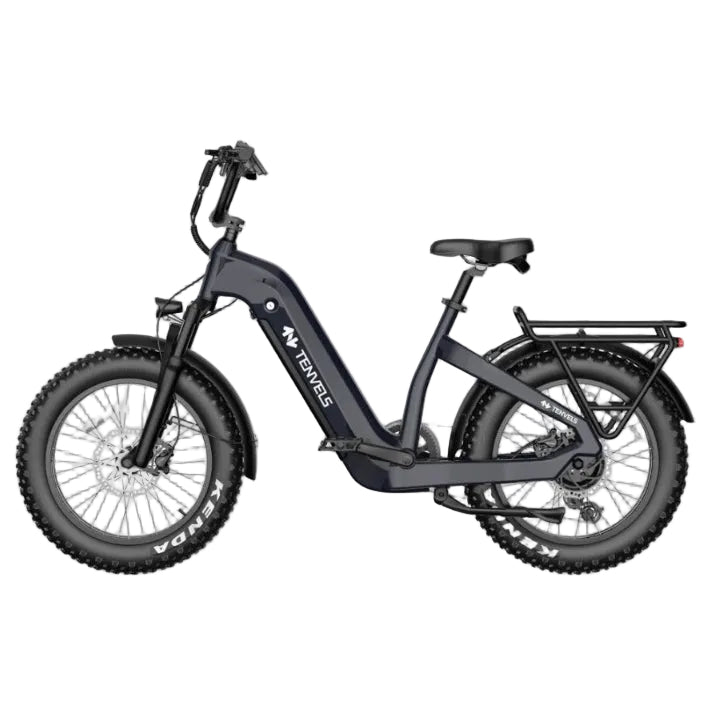

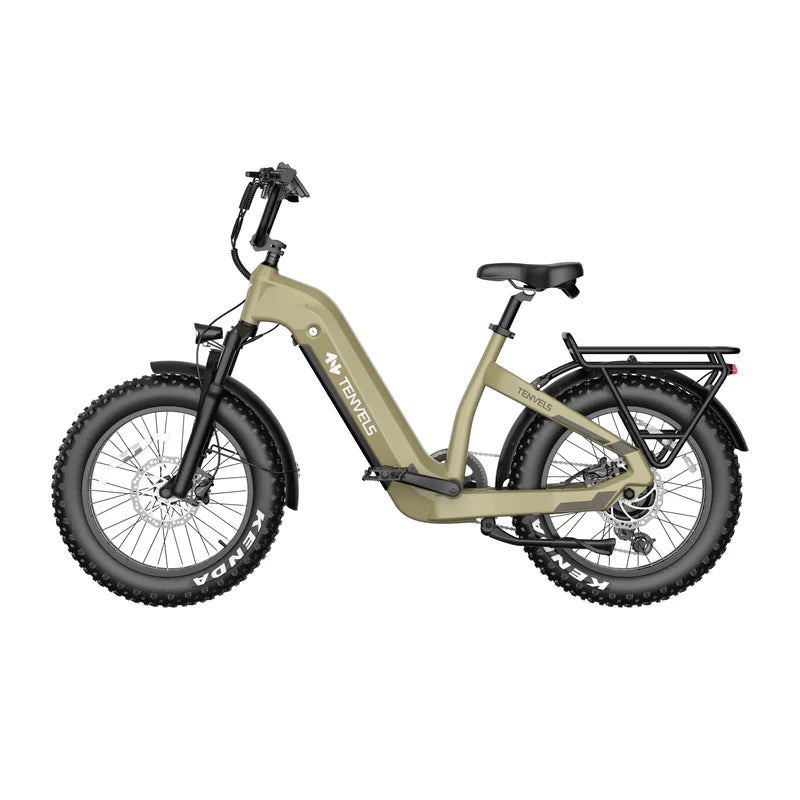

NOVA Step Thru E-Bike
NOVA Step Thru E-Bike
Regular price
$995.00 USD
Regular price
Sale price
$995.00 USD
Quantity
Couldn't load pickup availability
Model Name
NOVA
Colors
Tundra Grey/ Midnight Blue/ Jet Black
Frame Type
Step-Through
Size Guide
Bike Dimensions
1730 x 710 x 1100mm
Recommended Rider Height
5'5" – 6'5"
Electronic System
Motor Hub

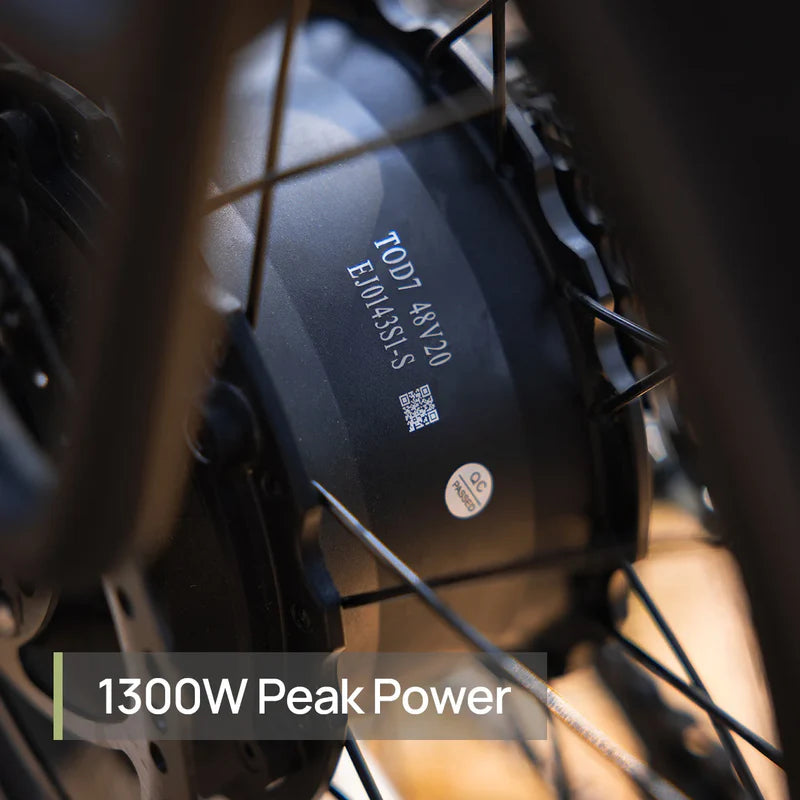

750 W motor, 1300 W peak power, 90 Nm torque
Battery
Samsung 21700 cells; 48 V 20 Ah (960 Wh), IP54 waterproof, UL 2271 certified
Charger
54.6V / 2A, US plug, DC2.1 charging port; UL 62368 or UL 1030 compliant
Display
KD1926 LCD
Sensor

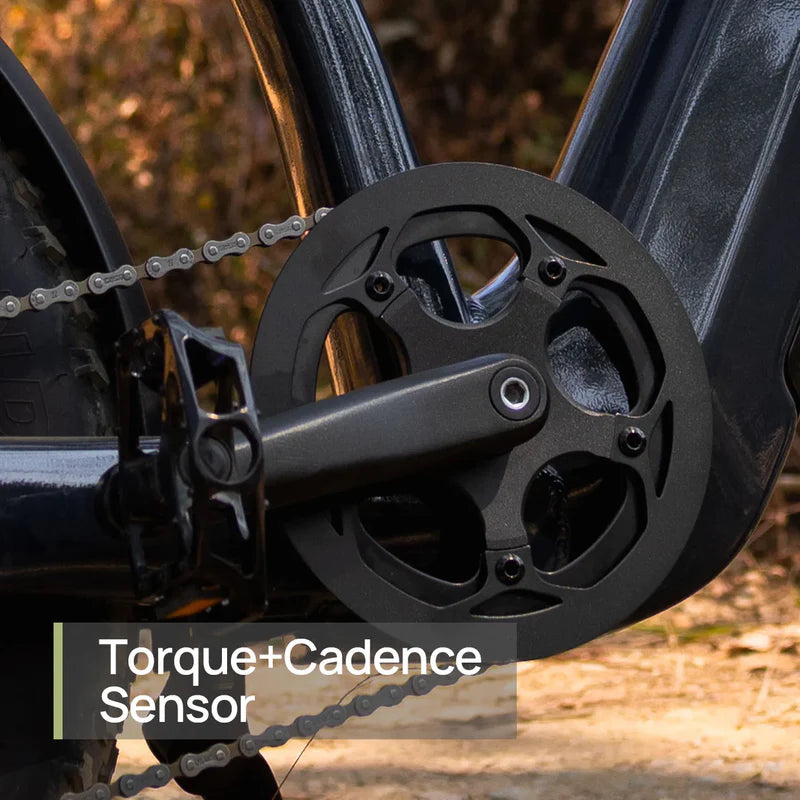

Cadence+Torque sensor
USB Port
None
Throttle Assist
Twist throttle
Pedal Assist Mode
5 levels of pedal assist
Front Light
48V / 2.2W LED light
Rear Light
Brake highlighted with left & right turn signals
Waterproof Rating
IP54 (entire bike)
Frame Components
Frame
Aluminum alloy
BatteFront Fork
80 mm suspension fork with lockout and adjustable preload
Speed & Range
Top Speed
28 mph (approx. 45 km/h)
Throttle Range
50 miles (approx. 80 km) with throttle only
Pedal Assist Range
93 miles (approx. 150 km) with pedal assist
Brake System
Brake Type
Hydraulic disc brakes
Brake Rotor
180 mm rotors (front & rear)
Brake Lever
Aluminum alloy, with motor cutoff function
Weight & Load Capacity
Net Weight
79 lbs (approx. 36 kg)
Max Load Capacity
330 lbs (approx. 150 kg, including rider and cargo)
Rear Rack Capacity
110 lbs (approx. 50 kg)
Cockpit (Riding Control Area)
Handlebar
Aluminum alloy, Ø22.2 mm, 680 mm length
Grips
Durable, eco-friendly grips
Stem (Handlebar Stem)
Non-adjustable, aluminum alloy
Saddle
Ergonomic comfort saddle, one-piece molded
Seat Post
Aluminum alloy, Ø30.9 mm, 300 mm length
Seat Clamp
Aluminum alloy, quick-release
Wheels
Rim
Aluminum alloy rims
Front Hub
Aluminum alloy, nut-type
Tire
20×4.0 inch eBike tires
Accessories
Fender
Steel, full coverage (front and rear)
Rear Rack
Aluminum alloy
Pedal
Aluminum alloy, non-foldable
Kickstand
Aluminum alloy, center-mounted
Certifications
UL Certification
UL 2849 and UL 2271 certified
ISO Standard
ISO 4210
Drivetrain System
Chainring
40T
Crankset
Aluminum alloy, 170 mm crank arms
Freewheel
7-speed
Chain
KMC 7-speed
Rear Derailleur
SHIMANO 7-speed
Shifter
SHIMANO 7-speed
